• DUNOS-R surge cleaner

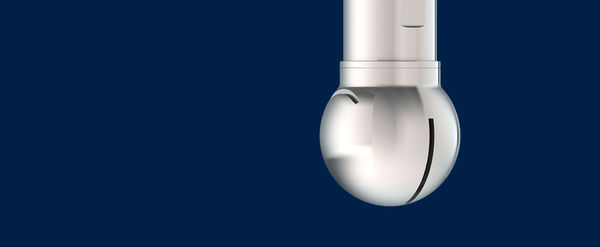

    DUNOS-R surge cleaner

    Flexible and efficient

    The rotating cleaning nozzles of the DUNOS-R series set standards in this product segment. The DUNOS-R allows any installation position as well as a fixed connection to the container or flexible hose connections.

DUNOS R surge cleaner

Flexible installation, thorough cleaning

The cleaners of the DUNOS R series set standards in flexibility, cleaning results and freedom from maintenance. The self-cleaning surge cleaners show their full strength especially in complex cleaning tasks of sensitive components, such as diaphragms and compensators.

Where high pressures and punctual application of forces are not desired or permitted, the cleaners of the DUNOS R series ensure outstanding cleanliness. The fast-rotating nozzle wets the surface evenly and, thanks to a large selection of materials, is ideally suited even for extremely aggressive cleaning media.

Driven by the cleaning medium and equipped with a maintenance-free plain bearing, the cleaner demonstrates the best cleaning results with the longest service life and freedom from particles.

Thanks to the flexible use of different materials and jet angles, it is an excellent partner for your cleaning application.

Contact us, we will be happy to advise you.



• Cleaning pattern spatially 180°, 270°, 360°

• Flexible mounting position

• Hygienic Design

• Maintenance-free

• Optimised flow rates

Technical data

Model | Mounting size

R15
R32
R60
R90

min. 16 mm
min. 32 mm
min. 60 mm
min. 90 mm

Cleaning diameter according to ASME

up to 2,5 meters

Operating pressure

1–8 bar

Temperature cleaning medium

4 - 97 °C

Materials Stainless steel version

Standard:
Optional:
Optional:

1.4404
1.4435
Hastelloy

Optional plastic version

PTFE
pure
PTFE GF
PTFE conductive

Surfaces

Ra < 0.8 µm

Certificates

ATEX (stainless steel models only)
Material certificates

Connections

Thread
Split pin
Weld-on end
