• DUNOS O rotating jet cleaners

    DUNOS O rotating jet cleaners

    Individuality, effectiveness and efficiency

    Strong against dirt and gentle to the environment. The movable cleaning head and the rotating nozzles of the DUNOS O series lead to an outstanding and efficient cleaning result within a few rotation cycles.

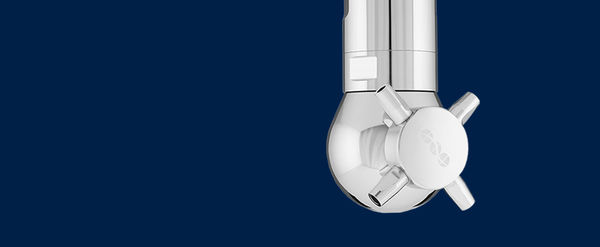

DUNOS O rotating jet cleaner

Highest effect

Cleaners of the DUNOS O series convince through their highest mechanical cleaning effect with simultaneous low use of the cleaning medium.

In addition, the cleaner can be individually adapted to the cleaning task by selecting the individual components. The cleaners create an orbital cleaning pattern through a rotary movement of the head with simultaneous rotation of the nozzles.

The circular movements of the DUNOS O series clean containers safely and comprehensively within a few rotation cycles.

Due to the selection and use of the highest quality materials and components, the target jet cleaner is virtually maintenance-free and can be customised for a wide range of cleaning applications.



• Individually adjustable

• Flexible installation position

• Self-cleaning

• Optimised volume flow

• Low maintenance

Technical data

Model | Mounting size

O50
O90

min. 67 mm
min. 128 mm

Cleaning diameter according to ASME

up to 5.5 m

Materials

Standard:
Optional:
Optional:

1.4404
1.4435
Hastelloy

Temperature cleaning medium

4–97 °C

up to 10,000 mm* up to 14,000 mm*

Sealing material

Standard:
Optional:
Optional:

EPDM
FKM
FFKM

Surfaces

Ra ≤ 0.8 µm

Certificates

ATEX
Material certificates

Operating pressure

3–15 bar

Connections

Thread
Welding end
