  • Gear-controlled surge cleaner DUNOS R-F

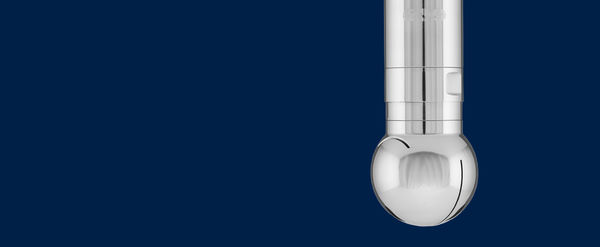

    Gear-controlled surge cleaner DUNOS R-F

    Flexibility, control and efficiency

    Gear-controlled cleaning nozzles for flexible installation position: the DUNOS R-F series. The gearbox drives the cleaner and controls its rotation. The DUNOS R-F series can be perfectly adapted to your process and your cleaning task: individual design of the nozzle and optional equipment of various support tubes.

Surge cleaner DUNOS R-F

Combined advantages

DUNOS R-F series cleaners combine the advantages of the DUNOS R-F series with the advantages of gear-controlled cleaning technology.

The built-in gearbox drives the cleaner and controls its rotation. The DUNOS R-F series can be perfectly adapted to your process and cleaning task thanks to the possibility of individual nozzle design and optional equipment of different support tubes.

The nozzle, which is controlled by the gearbox, wets the surface evenly and ensures excellent cleaning results and is particularly suitable for cleaning sensitive components and medium-sticking contamination.

Another advantage of the gear control - a cleaning diameter that is many times larger than that of purely fluid-operated rotary or surge cleaners.

Contact us, we will be happy to advise you.





• Available with beam angle 180°, 270°, 360°

• Customisable connection to the container

• Flexible mounting position

• Hygienic design

• Low maintenance

Technical data

Model | Mounting size

RF32
RF60
RF90

min. 40 mm
min. 60 mm
min. 90 mm

Cleaning diameter according to ASME

up to 12 meters

Operating pressure

3–15 bar

Materials

1.4404, alternatively 1.4435, alternatively Hastelloy

Surfaces

Ra < 0,8 µm

Temperature cleaning medium

4–97 °C

Certificates

ATEX, material certificates

Seals

EPDM, alternatively FKM, alternatively FFKM

Connections

Thread
Welding end

Certificate
Certificate
